VISUAL SUMMARY

INTERPRETING A CLADOGRAM

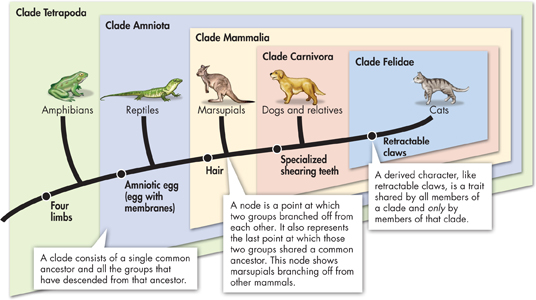

A Cladogram with frames of Cats, Dogs and relatives, Marsupials, Reptiles and Amphibians.

FIGURE 18–9 This cladogram shows the evolutionary history of cats. In a cladogram, all organisms in a clade share a set of derived characters. Notice that smaller clades are nested within larger clades. Interpret Visuals For which clade in this cladogram is an amniotic egg a derived character?

dd

Interpreting Cladograms We can now put this information together to “read” a cladogram. Figure 18–9 shows a simplified phylogeny of the cat family. The lowest node represents the last common ancestor of all four-limbed animals—members of the clade Tetrapoda. The forks in this cladogram show the order in which various groups branched off from the tetrapod lineage over the course of evolution. The positions of various characters in the cladogram reflect the order in which those characteristics arose in this lineage. In the lineage leading to cats, for example, specialized shearing teeth evolved before retractable claws. Furthermore, each derived character listed along the main trunk of the cladogram defines a clade. Hair, for example, is a defining character for the clade Mammalia. Retractable claws is a derived character shared only by the clade Felidae. Derived characters that occur “lower” on the cladogram than the branch point for a clade are not derived for that particular clade. Hair, for example, is not a derived character for the clade Carnivora.

In Your Notebook List the derived characters in Figure 18–9 and explain which groups in the cladogram have those characters.

End ofPage 519
